As businesses and organisations connect more devices to their networks, reliable and high-performance WiFi has become essential. Video conferencing, cloud applications, large file transfers, streaming and connected devices all place greater demands on wireless infrastructure.
The Ubiquiti UniFi U7 Pro XG is designed for organisations that need fast, scalable wireless connectivity. Combining WiFi 7 technology, tri-band connectivity, 10 GbE networking and PoE+ power, it provides a high-performance solution for modern business and high-density environments.
With support for up to 300+ connected devices and coverage of up to 140 m², the U7 Pro XG is designed to provide reliable wireless connectivity while integrating seamlessly with the wider UniFi networking ecosystem.

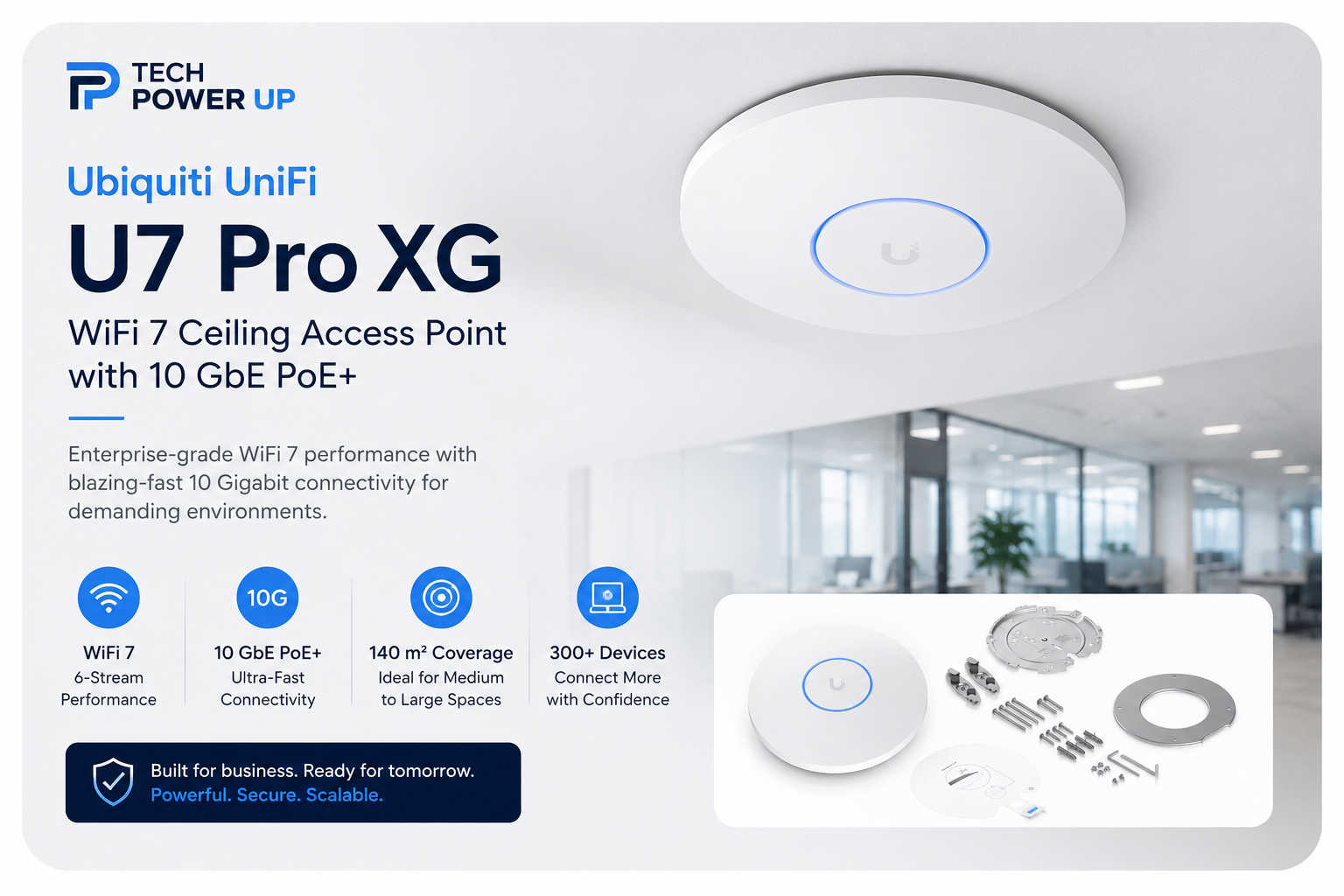

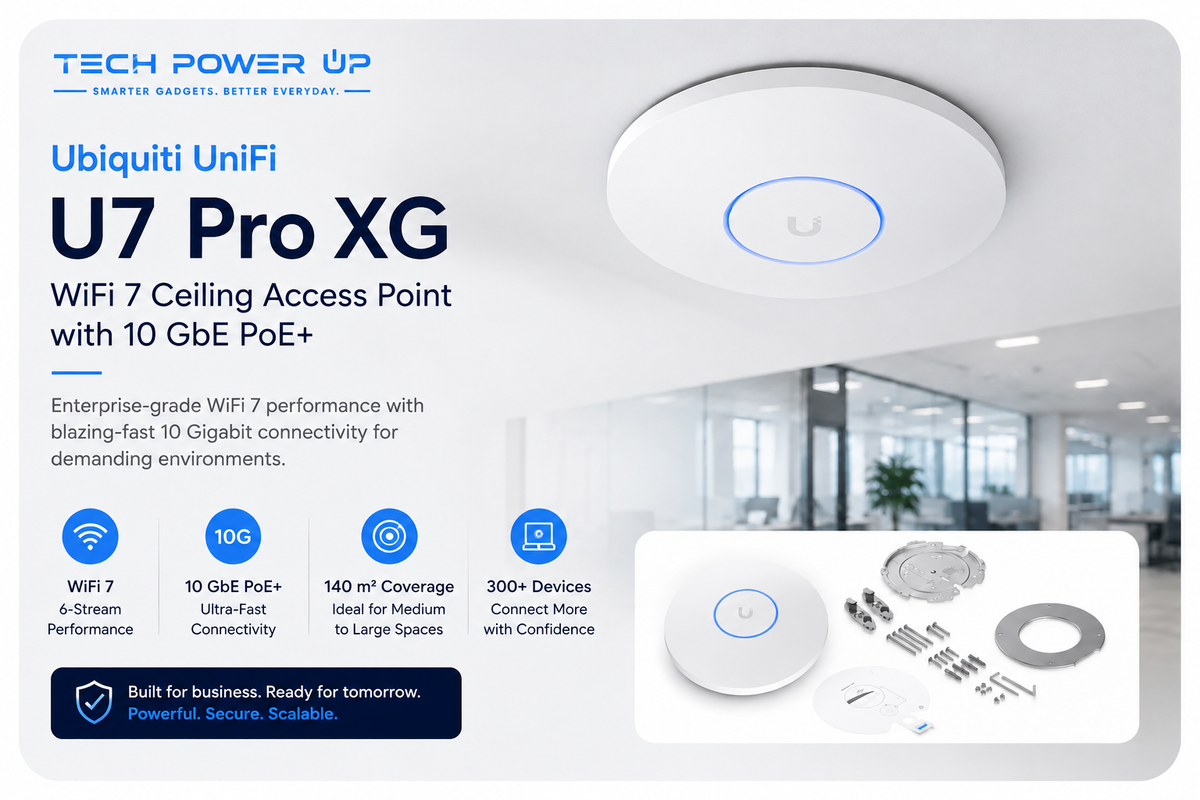

What Is the Ubiquiti UniFi U7 Pro XG?
The U7 Pro XG is a ceiling-mounted WiFi 7 access point from Ubiquiti's UniFi range. It is designed for businesses and professional environments that require high-speed wireless networking and centralised network management.
The access point operates across the 2.4 GHz, 5 GHz and 6 GHz bands, providing flexible connectivity for a wide range of wireless devices. It features six spatial streams and is designed to support high numbers of simultaneous connections.
Its compact, low-profile design makes it suitable for ceiling or wall installations, while PoE+ allows power and network connectivity to be delivered through Ethernet.
WiFi 7 for Modern Wireless Networks
One of the key features of the U7 Pro XG is its support for WiFi 7, the latest generation of WiFi technology.
WiFi 7 is designed to improve wireless performance through greater bandwidth, improved efficiency and lower latency. This makes it particularly useful for environments where many devices need to communicate with the network simultaneously.
The U7 Pro XG supports three wireless bands:
-
2.4 GHz
-
5 GHz
-
6 GHz
It provides maximum theoretical data rates of up to 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz and 5.8 Gbps on 6 GHz, depending on configuration and compatible client devices.
Actual wireless performance will vary based on factors such as client hardware, network configuration, distance, interference and building construction.
10 GbE Connectivity
High-performance WiFi requires a network connection that can handle the available wireless bandwidth. The U7 Pro XG addresses this with a 10 GbE RJ45 uplink, supporting 10/5/2.5/1 GbE connections.
The 10 GbE connection provides significantly more capacity than a traditional 1 GbE access point connection. This makes the U7 Pro XG a suitable option for networks where users regularly transfer large files, access cloud-based applications, participate in video conferences or use other bandwidth-intensive services.
For organisations already investing in multi-gigabit networking, the 10 GbE uplink also provides additional capacity for future network requirements.
Designed for High-Density Environments
Modern workplaces can have hundreds of connected devices, including computers, smartphones, tablets, printers, IoT equipment and other network-enabled devices.
The U7 Pro XG is designed to support 300+ client devices and provide up to 140 m² of coverage, making it suitable for a range of professional environments.
Potential applications include:
-
Offices
-
Commercial buildings
-
Schools and educational facilities
-
Retail environments
-
Hospitality venues
-
Meeting and conference areas
-
High-density wireless deployments
Coverage and performance will depend on the environment, access point placement, building materials, interference and the number of connected devices.
Tri-Band Wireless Connectivity
The U7 Pro XG's tri-band design provides access to the 2.4 GHz, 5 GHz and 6 GHz frequency bands.
The 2.4 GHz band offers broad compatibility with a wide range of devices. The 5 GHz band can provide higher performance for many modern devices, while the 6 GHz band provides additional spectrum for compatible WiFi 6E and WiFi 7 devices.
The access point also supports six spatial streams and Multi-Link Operation (MLO), allowing compatible WiFi 7 devices to take advantage of newer wireless capabilities.
This combination makes the U7 Pro XG well suited to networks with a mixture of older and newer wireless devices.
Advanced UniFi Network Management
The U7 Pro XG is part of the UniFi ecosystem and can be managed through UniFi Network.
This provides network administrators with centralised tools for configuring, monitoring and managing wireless connectivity across a UniFi deployment.
Supported features include:
-
Wireless meshing
-
Band steering
-
Fast roaming
-
Guest network isolation
-
WiFi speed limiting
-
Private Pre-Shared Keys (PPSK)
-
Captive portal authentication
-
RADIUS authentication
-
VLAN assignment
-
Passpoint and Hotspot 2.0 support
These features allow businesses to create different wireless environments for employees, guests, IoT devices and other users while maintaining greater control over network access.
Security for Business Networks
Wireless performance is only one part of a professional network. Security and user management are equally important.
The U7 Pro XG supports modern wireless security features, including WPA3, guest network isolation, PPSK and RADIUS authentication.
Businesses can use these capabilities to separate network access according to user groups and device types. For example, employee devices can operate on a dedicated network while guests and IoT devices are placed on separate networks.
This can help organisations maintain better control over who and what can access different parts of their network.
PoE+ for Simplified Installation
The U7 Pro XG is powered through PoE+ and has a maximum power consumption of approximately 22 W.
Power over Ethernet allows both network connectivity and electrical power to be delivered through a single Ethernet cable. This can simplify installation, particularly for ceiling-mounted access points.
A compatible PoE+ switch or power source can provide the required power while connecting the access point to the network.
This approach can also help maintain a cleaner installation by reducing the need for additional power cables around the access point.
Professional Ceiling-Mounted Design
The U7 Pro XG has a compact, low-profile design measuring approximately 206 mm in diameter and 32.5 mm in height.
It can be installed on a ceiling or wall using the supplied mounting hardware. The clean white finish allows it to blend into a range of modern office and commercial environments.
For best results, access point placement should be planned around the building layout, expected coverage area, user density and potential sources of wireless interference.
Who Is the U7 Pro XG For?
The U7 Pro XG is a strong option for businesses and organisations that need high-performance wireless connectivity and a scalable network infrastructure.
It may be particularly suitable for organisations that:
-
Want to upgrade to WiFi 7
-
Have a high number of connected devices
-
Require multi-gigabit networking
-
Need a 10 GbE access point uplink
-
Want centralised UniFi management
-
Require advanced wireless security features
-
Prefer PoE-powered installations
-
Are building a high-density wireless network
For smaller networks with fewer users and lower bandwidth requirements, a more affordable UniFi access point may be sufficient. The right choice will depend on the size of the environment, number of devices and expected network usage.
Build a Faster, More Scalable UniFi Network
A reliable wireless network depends on more than the access point alone. Network switches, Ethernet cabling, PoE infrastructure, internet connectivity and access point placement all contribute to overall performance.
The U7 Pro XG is designed to integrate into a broader UniFi deployment, giving businesses the flexibility to build and expand their network as requirements change.
If you are planning a new wireless installation or upgrading an existing network, you can explore the Ubiquiti UniFi WiFi range at Tech Power Up or view the Ubiquiti UniFi U7 Pro XG.
Final Thoughts
The Ubiquiti UniFi U7 Pro XG is designed for organisations that need fast, reliable and scalable wireless connectivity. With WiFi 7, tri-band operation, six spatial streams, 10 GbE connectivity, PoE+ power and support for 300+ devices, it provides the capabilities required by many modern business networks.
Its advanced UniFi management features also make it easier for network administrators to manage wireless connectivity, security and user access from a centralised platform.
For businesses upgrading to WiFi 7 or building a new high-performance wireless network, the U7 Pro XG provides a strong combination of performance, connectivity and scalability.
