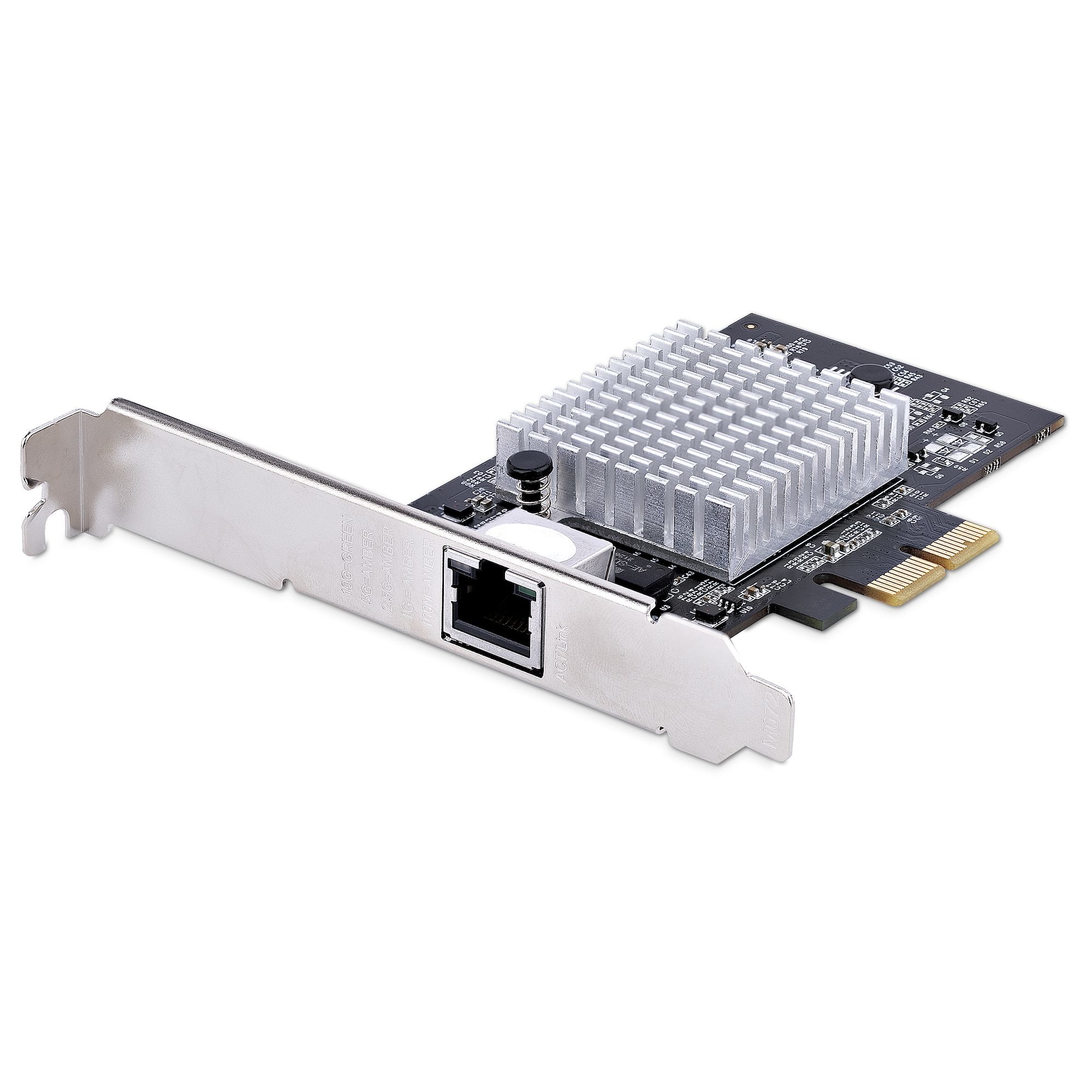

1-Port 10Gbps PCIe Network Adapter Card

This 10Gbps PCIe network adapter card provides high-speed multi-gigabit Ethernet performance for desktops and servers using existing Cat5e, Cat6, or Cat6a cabling. The single-port network interface card (NIC) supports six different speeds—10G, 5G, 2.5G, 1G, 100Mbps, and 10Mbps—ensuring wide compatibility with both legacy hardware and modern infrastructure.

The adapter uses the Marvell AQC113CS chipset and connects via a PCI Express x2 3.0 (or higher) expansion slot. It is compatible with Windows 11, 10, 8, Windows Server, and Linux, making it a versatile solution for system upgrades or new installations in business, lab, or home server environments.

Designed for flexibility, the NIC includes both a standard profile bracket and a low-profile bracket for small form factor systems. It also supports VLAN tagging, PXE Boot, AVB (Audio Video Bridging), PTP (Precision Time Protocol), jumbo frames up to 16K, and Wake-on-LAN functionality.

Key features:

• 1x RJ-45 port (10GBASE-T / NBASE-T)

• PCIe 3.0 x2 interface for high-speed system connectivity

• Supports data rates of 10G, 5G, 2.5G, 1G, 100Mbps, and 10Mbps

• Compatible with standard and low-profile PCs (LP bracket included)

• Supports 16K jumbo frames, VLAN tagging, AVB, and PTP

• Operating temperature: 0°C to 60°C (32°F to 140°F)

• LED status indicators for link speed

• Plug-and-play compatibility with major OS platforms

Specifications:
Connector type: 1 x PCI Express x2
External ports: 1 x RJ-45
Operating temperature: 32°F to 140°F (0°C to 60°C)
Storage temperature: 14°F to 158°F (-10°C to 70°C)
Hardware ports: 1
Hardware interface: RJ45 (10 Gigabit Ethernet)
Bus type: PCI Express
Card type: Standard Profile (low-profile bracket included)
LED indicators: 1 green LED (10Gbps), 1 amber LED (5G/2.5G/1G/100M/10M)
Wake-on-LAN: supported
Max data transfer rate: 10Gbps
Compatible networks: 10G/5G/2.5G/1G/100Mbps/10Mbps
Full duplex support: yes
Power source: bus powered
OS compatibility: Windows 11, 10, 8, Windows Server, Linux
Country of origin: Malaysia
Dimensions: 4.2 in. (L) x 2.2 in. (W) x 0.6 in. (H)
Weight: 0.26 lbs

Attributes:
MPN: ST10GSPEXNB2
Model: 065030897549
Color: black
