StarTech.com M.2 SSD Card 1x PCIe (NVMe) 2x SATA M.2
- Description
- Reviews
Description:

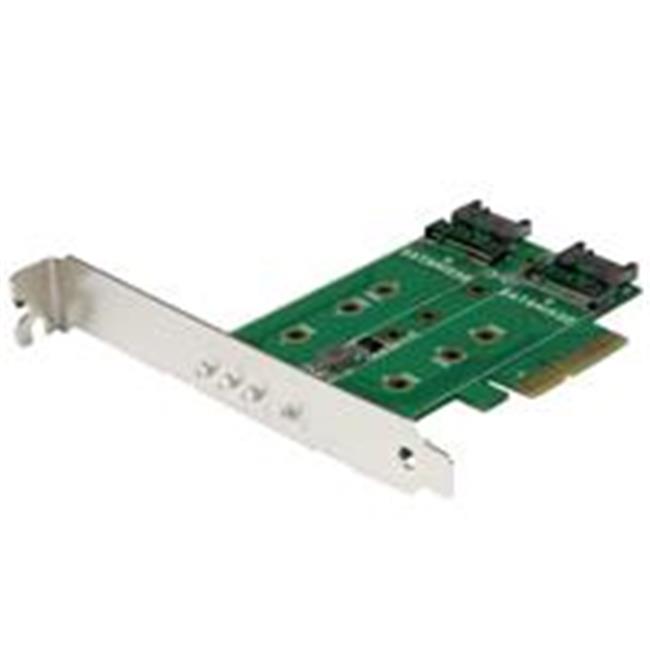

The StarTech.com M.2 SSD Card (Model: PEXM2SAT32N1) is a high-performance 3-port M.2 adapter card designed to enhance your system's speed and storage capacity. This versatile expansion card allows you to install up to three M.2 solid-state drives—two SATA-based and one PCIe NVMe—into any desktop or server with a PCIe slot.
Ideal for system upgrades, data recovery, or compact PC builds, the card supports full bandwidth to each drive (up to 40Gbps for PCIe and 6Gbps for SATA) and features wide compatibility with multiple drive lengths (2230, 2242, 2260, and 2280). Designed for plug-and-play simplicity, the card requires no drivers and includes both full and low-profile brackets for broad installation support.
Key Features:
-
Add up to 3 M.2 SSDs (2x SATA, 1x PCIe NVMe) to your PC
-
PCIe 3.0 x4 interface supports ultra-fast NVMe drives
-
Wide drive compatibility: 2230, 2242, 2260, 2280 sizes
-
Tool-free adjustable standoffs for easy installation
-
Includes low-profile bracket for SFF systems
-
No drivers required; OS-independent setup
-
Supports bootable drives; ATAPI supported
-
Ideal for desktops, servers, or data recovery applications
Specifications:
-
MPN: PEXM2SAT32N1
-
Model: PEXM2SAT32N1
-
Color: Black
-
Size: All
-
Dimensions: 162 mm (L) x 130 mm (W) x 32 mm (H)
-
Weight: 1 lb
-
Ports: 3 x M.2 (2 SATA, 1 PCIe NVMe)
-
Interface: PCI Express 3.0 x4
-
Drive Type Support: M.2 SATA & PCIe NVMe
-
Form Factor Support: 2230 / 2242 / 2260 / 2280
-
Operating System: OS independent
-
Bracket Included: Standard and low-profile
