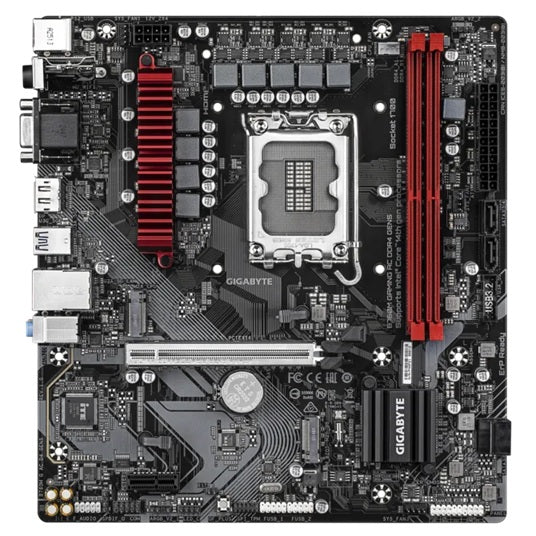

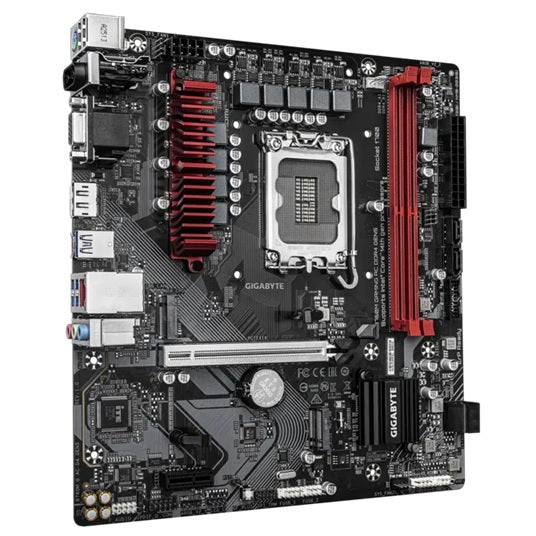

Gigabyte B760M GAMING AC DDR4 GEN5, B760 LGA 1700 ATX Motherboard – DDR4, Wi-Fi AC, 2.5GbE – B760M G AC D4 GEN5

Intel B760 chipset with LGA1700 socket, supporting 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors.

2× DDR4 DIMM slots supporting up to 64GB, dual-channel memory architecture, speeds up to DDR4-5333 (OC) and Intel XMP.

PCIe 5.0 x16 slot for high-performance graphics cards or compatible NVMe SSDs, plus a PCIe 3.0 x1 expansion slot.

Dual M.2 PCIe 4.0 connectors for high-speed NVMe storage, complemented by 4× SATA 6Gb/s ports with RAID 0/1/5/10 support.

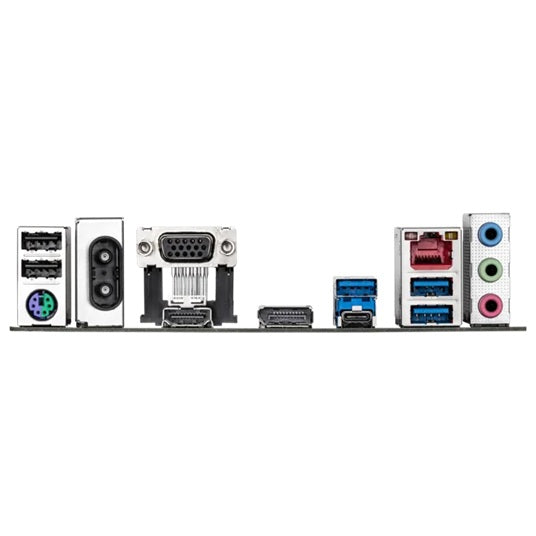

Integrated graphics outputs include HDMI 2.1, DisplayPort 1.2 and D-Sub, supporting up to 4K resolution on HDMI and DisplayPort.

Realtek 2.5GbE LAN provides fast wired networking with support for 2.5Gbps, 1Gbps and 100Mbps connections.

Built-in Wi-Fi AC connectivity provides convenient wireless networking alongside the wired LAN interface.

Micro ATX form factor measuring 24.4 × 22.5cm, with GIGABYTE Control Center, Q-Flash, Q-Flash Plus and Smart Backup support.

Supports Windows 11 and Windows 10 64-bit and includes Norton Internet Security OEM, backed by a 36-month warranty.
