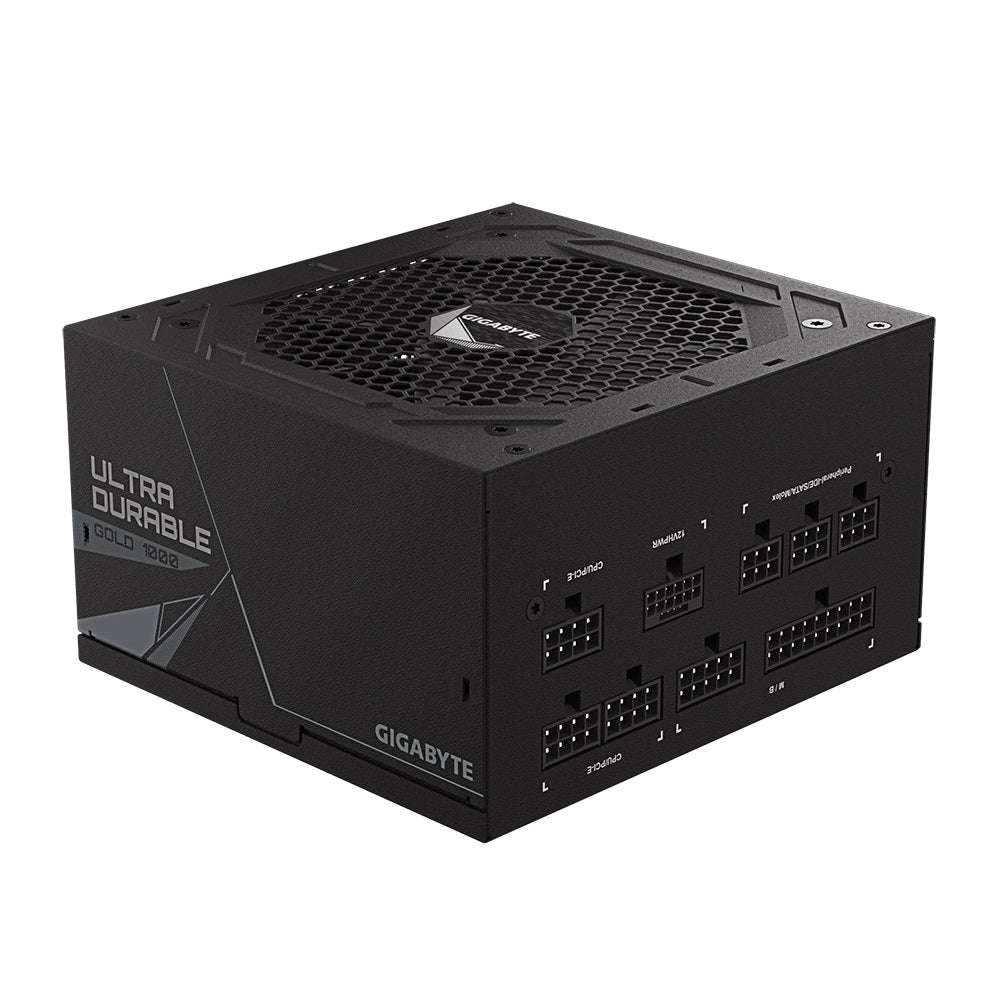

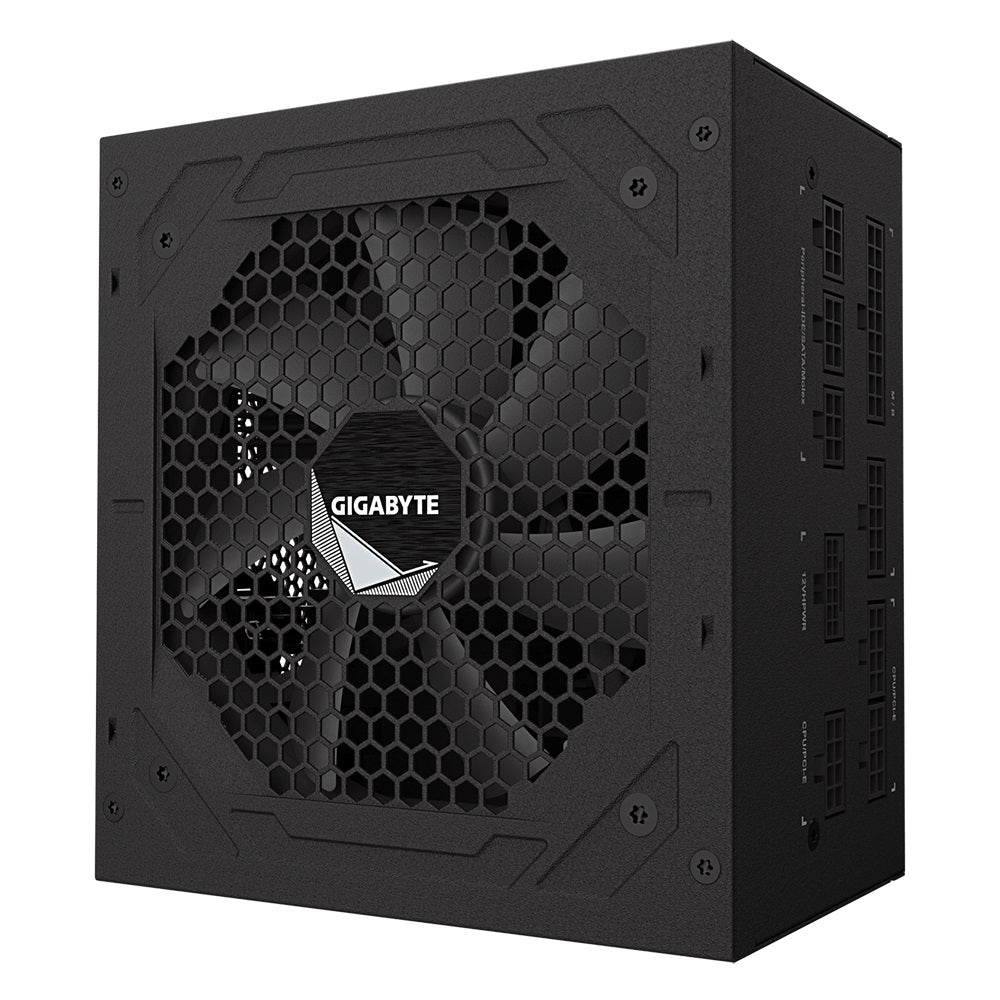

Gigabyte UD1000GM PG5 2.0 1000W 80 PLUS Gold ATX 3.0 Power Supply – GP-UD1000GM PG5 V2

1000W ATX 12V v3.0 power supply with 80 PLUS Gold certification and 90% typical-load efficiency.

Fully modular design with flat, all-black cables for cleaner builds and improved cable management.

PCIe Gen 5.0 16-pin connector supports modern high-performance graphics cards.

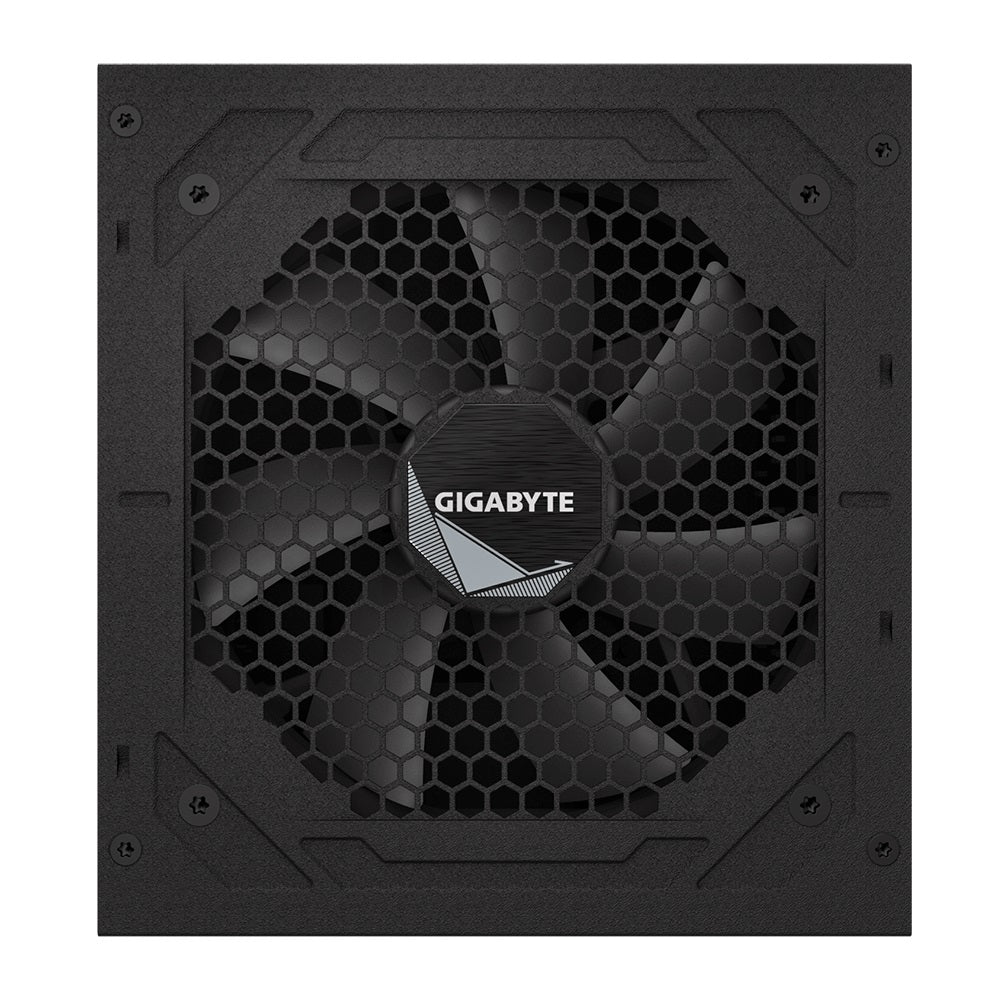

120mm Hydraulic Bearing (HYB) fan with enhanced thermal design and >100,000-hour MTBF for reliable cooling.

Built with main Japanese capacitors and Active PFC with >0.9 typical power factor.

Comprehensive protection including OVP, OPP, SCP, UVP, OCP and OTP for connected components.

Compact 150 × 140 × 86mm ATX form factor with >16ms hold-up time and 100–150ms Power Good signal.

Includes 2 × 4+4-pin CPU/EPS, 1 × PCIe 16-pin, 4 × PCIe 6+2-pin, 8 × SATA and 3 × 4-pin peripheral connectors.

Backed by a 10-year manufacturer's warranty.
