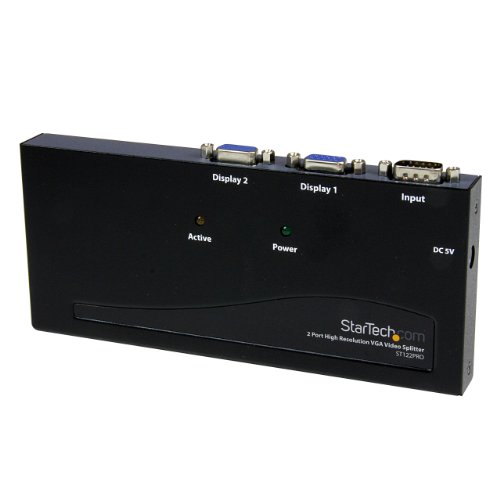

2 Port High Resolution VGA Video Splitter, 350 MHz

The ST122PRO 2-Port High Resolution VGA Video Splitter is a professional-grade solution designed to distribute a single VGA video source to two monitors or projectors simultaneously. It's ideal for applications such as presentations, classrooms, trade shows, and retail displays where high-quality video output is essential across multiple screens.

This VGA splitter supports resolutions up to 2048x1536 at 80Hz and offers a high 350 MHz bandwidth to maintain signal clarity and detail. Built with an integrated video booster, it allows signal extension up to 210 feet (65 meters), giving users the flexibility to place displays wherever needed without compromising image quality.

The unit is daisy-chainable, supporting near-unlimited expansion. It also includes a 120V AC power adapter and is compatible with standard VGA extension cables. DDC compatibility ensures that the monitor connected to Video Out 1 communicates correctly with the video source, optimizing display performance.

Key Features:

• Displays a single VGA source on 2 monitors simultaneously

• Supports high resolutions up to 2048x1536 @ 80Hz

• 350 MHz video bandwidth for high image quality

• Built-in video amplifier boosts signal up to 210 ft (65 m)

• Daisy-chainable for expanded display setups

• Compatible with DDC and standard VGA extension cables

• Includes 120V AC power adapter

Specifications:

• Ports: 2

• Max Resolution: 2048x1536 @ 80Hz

• Bandwidth: 350 MHz

• Max Cable Length: 213.2 ft (65 m)

• MTBF: 1,588,136 hours

• Connector Type: VGA (15-pin High-Density D-Sub) Male

• Power: 5V DC, 0.6A, 3W power consumption (AC adapter included)

• Operating Temperature: 5°C to 40°C

• Humidity Tolerance: 0–80% RH (non-condensing)

• Audio Support: No

• Color: Black

• Dimensions: 7.1 in (L) x 0.8 in (H)

• Weight: 0.59 lbs

Attributes:

• MPN: ST122PRO

• Size: All

• Color: Black

• Age Group: Adult

• Gender: Unisex

• Weight (system): 11.3 lb
