2-Port PCIe 10Gb Ethernet Network Card

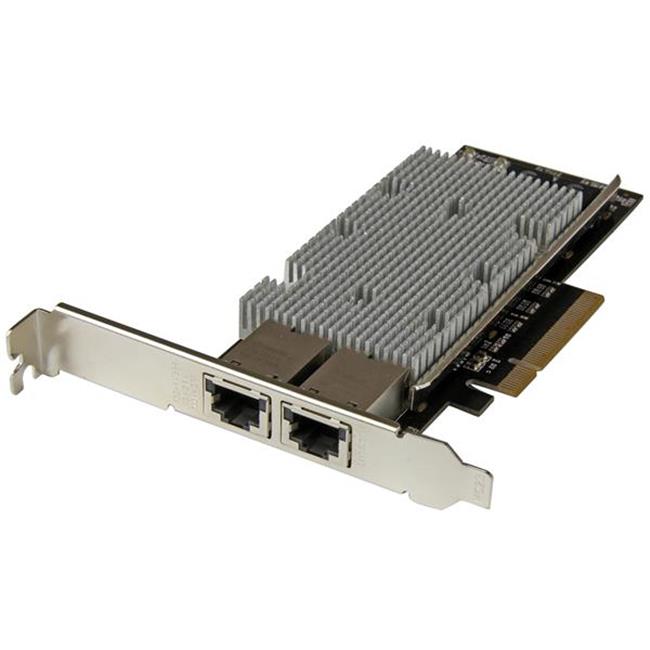

StarTech.com Dual-Port 10GBase-T PCIe Network Card – Intel X540 Chipset

Upgrade your server or workstation with high-speed, reliable connectivity using the StarTech.com ST20000SPEXI Dual-Port 10GBase-T Network Interface Card. Powered by the Intel X540 chipset, this card adds two RJ45 ports via a single PCIe x4 (or higher) slot, delivering up to 20Gbps full-duplex bandwidth—ideal for high-performance computing, virtualization, and large file transfers.

Key Features:

• Dual RJ45 Ports: Add two 100/1000/10GBase-T Ethernet ports via PCIe

• Intel X540 Chipset: Supports Intel Virtualization Technology for enhanced connectivity

• High Bandwidth: Up to 10Gbps per port (20Gbps total full duplex)

• Advanced Networking: Supports VLAN tagging, Wake-on-LAN, jumbo frames (up to 15K), PXE boot

• Flexible Installation: Includes both full-height and low-profile brackets

• OS Compatibility: Works with a broad range of operating systems

• Energy Efficient: IEEE802.3az compliant for reduced power consumption

Technical Specs:

• Interface: PCI Express x4 (Rev. 2.0 compliant)

• Standards: IEEE 802.3/u/ab, 802.3ad (link aggregation), 802.3az

• Connector: 2 x RJ45

• Jumbo Frame Support: Up to 15,000 bytes

• Bracket Types: Full-height (pre-installed) and low-profile included

• Compatible Speeds: 10/100/1000/10000 Mbps

• Power Requirements: Standard PCIe slot powered

Attributes:

• MPN: ST20000SPEXI

• Model: ST20000SPEXI

• Size: All

• Color: Black

• Age Group: Adult

• Gender: Unisex

• Weight: 1.21 lb
