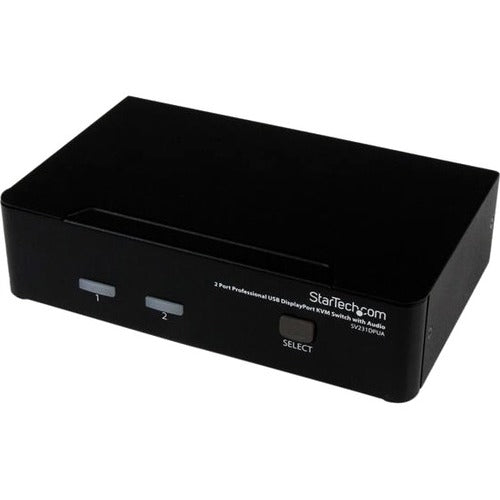

StarTech.com 2-Port USB DisplayPort KVM Switch with Audio – 4K WQUXGA Support
Easily manage two high-resolution DisplayPort computers using one monitor, keyboard, mouse, and audio setup with the StarTech.com SV231DPUA KVM switch. This professional-grade 2-port KVM switch supports ultra-high-definition resolutions up to 3840 x 2400, delivering crystal-clear static imaging—ideal for healthcare, engineering, and multimedia environments.
Engineered for seamless control, the switch allows effortless toggling between systems using front-panel push-buttons or convenient hotkey commands. With DisplayPort 1.1 support, enjoy rich 7.1-channel HD digital audio (with compatible displays), plus 3.5mm analog audio and microphone switching.
This switch also includes three USB ports—two for your keyboard and mouse, and one USB 2.0 hub port for sharing peripherals like printers or external drives. The compact design with all rear-facing ports helps reduce workspace clutter.
Key Features:
-
Control two DisplayPort computers with one USB keyboard, mouse & monitor
-
Supports resolutions up to 3840 x 2400 (WQUXGA) and 2560 x 1600 @ 60 Hz
-
Supports 7.1-channel digital audio via DisplayPort + 3.5mm analog audio/mic
-
USB 2.0 peripheral sharing through integrated hub
-
Easy switching via hotkeys or front-panel buttons
-
Compact design with rear-facing connections for clean setup
Technical Specifications:
-
Number of Computers: 2
-
Users Supported: 1
-
Max Video Resolution: 3840 x 2400 @ 60 Hz
-
Video Signal: WQUXGA
-
Input Voltage: 5V DC (via included adapter)
Interfaces/Ports:
-
User Ports:
-
4 x USB-A 2.0 (keyboard/mouse/peripheral)
-
2 x 3.5mm stereo audio (mic/speaker)
-
1 x DisplayPort 1.1 female
-
-
Computer Ports:
-
2 x DisplayPort female
-
2 x USB-B 2.0
-
4 x 3.5mm stereo (mic/speaker)
-
Physical Characteristics:
-
Dimensions: 1.73" (H) x 8.66" (W) x 5.12" (D)
-
Weight: 2 lb
-
Color: Multi
Environmental & Compliance:
-
Green Compliance: Yes
-
RoHS Certified
Attributes:
-
MPN: SV231DPUA
-
Model: SV231DPUA
-
Size: All
-
Color: Multi
-
Age Group: Adult
-
Gender: Unisex
-
Weight: 2 lb
