4-Bay Backplane for 2.5in SATA/SASDrives

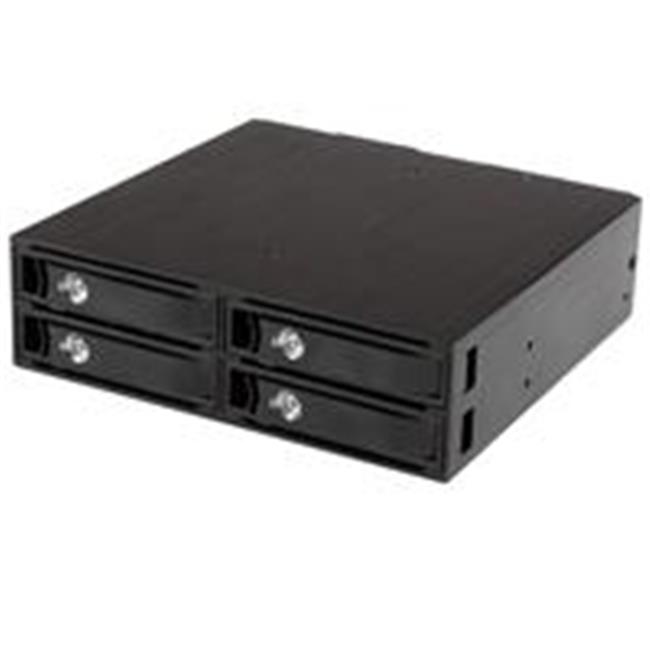

StarTech.com 4-Bay Mobile Rack Backplane for 2.5" SATA/SAS Drives – SATSASBP425
Maximize your system’s storage efficiency with the StarTech.com 4-Bay Mobile Rack Backplane, designed to house up to four 2.5" SATA or SAS drives within a single 5.25" drive bay. Supporting hot-swap functionality, this high-density backplane is ideal for environments where quick drive access, upgrades, or replacements are essential.

Built to accommodate SSDs and HDDs ranging from 5mm to 15mm in height, the durable, all-metal enclosure ensures reliable performance and efficient heat dissipation. Two integrated 40mm cooling fans maintain safe operating temperatures, while the lockable, removable trays provide secure, tool-free access to each drive.

Engineered with Non-Scratch SATA (NSS) connectors rated for over 50,000 insertion cycles, this backplane ensures long-term usability without compromising drive integrity. The interchangeable trays are compatible with both 4-bay (SATSASBP425) and 1-bay (SATSASBP125) configurations for seamless scalability.

Supporting SATA I/II/III and SAS II at speeds up to 6Gbps, the backplane works with RAID and HyperDuo controllers, giving you the freedom to build high-performance or redundant storage arrays tailored to your needs.

Features:

• Fits four 2.5" SATA/SAS drives in a single 5.25" bay

• Hot-swappable trays with locks for added security

• Supports drive heights from 5mm to 15mm

• NSS connectors rated for 50,000+ insertions

• Two built-in 40mm fans for enhanced thermal management

• Durable all-metal housing with UL 94 V-0 flame rating

• Compatible with SATA I/II/III and SAS II (up to 6Gbps)

• Tray compatibility with SATSASBP125 for easy expansion

Attributes:
MPN: SATSASBP425
Model: SATSASBP425
Size: All
Color: Black
Age Group: Adult
Gender: Unisex
Weight: 2.17 lb
