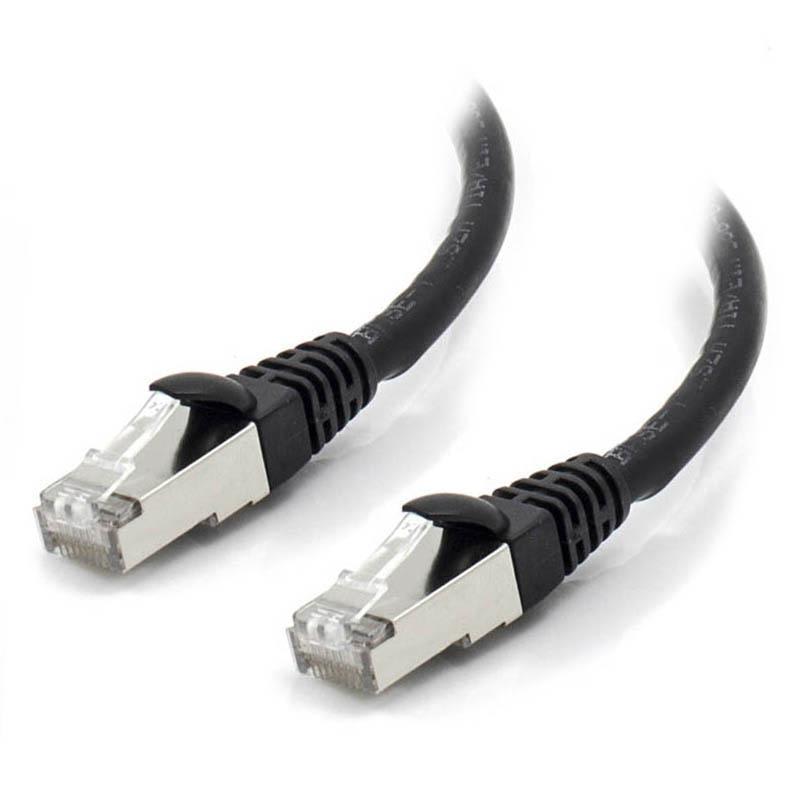

ALOGIC CAT6A NETWORK CABLE 5M BLACK

The ALOGIC Cat6A Shielded Network Cable is engineered to support next-generation high-speed networking applications, including 10GBASE-T Ethernet. Designed with precision and performance in mind, this 5-meter cable ensures reliable data transmission while meeting stringent international standards.

Key Features:

• High Performance: Rated for up to 750 MHz bandwidth, supporting 10 Gigabit Ethernet (10GBASE-T), 1000BASE-TX, and lower-speed Ethernet standards.

• Shielded for Superior Signal Integrity:

  • Each twisted pair is individually wrapped in aluminum foil (Mylar)

  • Overall copper braided shielding reduces electromagnetic interference (EMI)

• LSZH Jacket: Low Smoke Zero Halogen (LSZH) for enhanced fire safety—emits minimal smoke and no toxic halogens in the event of fire.

• Robust Build:

  • 26 AWG stranded bare copper conductors (7/0.16mm)

  • Gold-plated 50-micron RJ45 connectors (8P8C)

  • Snag-free strain relief molded boot for secure and reliable connections

• High Data Integrity: Suppresses ANEXT (Alien Near-End Crosstalk) for excellent 10GbE performance up to 100 meters.

• Wiring Scheme: T568A

• Standards & Certifications:

  • Compliant with TIA/EIA-568C.2, IEC 802.3an, ISO/IEC 11801

  • ETL, UL, and RoHS certified

  • A-Tick compliant as per ACMA requirements

Specifications:

• Length: 5 Meters

• Jacket Material: LSZH (Low Smoke Zero Halogen)

• Conductor: 26AWG stranded bare copper

• Connector Type: RJ45 (8P8C), gold-plated

• Voltage Rating: 30V

• Temperature Rating: 75°C

• Packaging: Polybag
