Brateck KL38-69T Large-Screen Large Tilt TV Wall Mount, Fit Screen Size: 43'-100' Up to 75 KG, Fine Texture Black, 85x938x625mm (new)

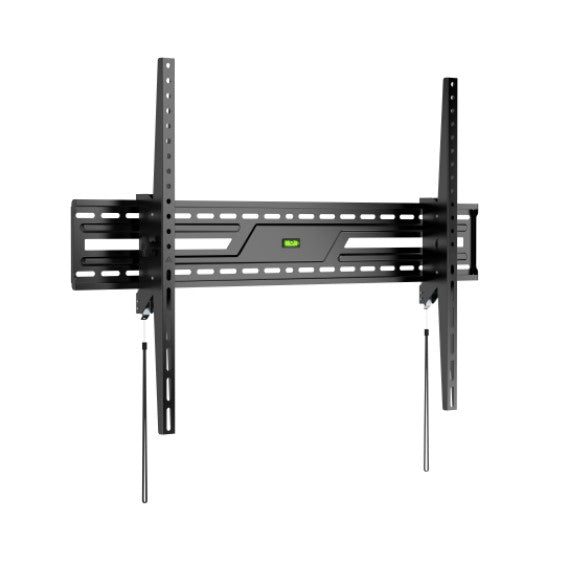

Brateck KL38-69T Large Tilt TV Wall Mount (43"–100")

Mount your large screen TV securely with the Brateck KL38-69T Tilt TV Wall Mount, designed for strength, stability, and simple installation. Built from heavy-duty steel, this mount supports televisions up to 100 inches and 75kg, making it ideal for large home theatre setups, living rooms, offices, and commercial displays.

The tilt adjustment feature allows you to angle your screen between +5° and -10°, helping reduce glare and achieve the perfect viewing position. Integrated spring locking mechanisms with quick-release cords allow fast TV removal when needed, while the built-in bubble level ensures a perfectly aligned installation.

With wide VESA compatibility and support for curved TVs, the KL38-69T offers a flexible mounting solution for most modern televisions.

Key Features

• Heavy-Duty Steel Construction – Strong and durable design supporting TVs up to 75kg
• Tilt Adjustment (+5° to -10°) – Reduce glare and optimise viewing angles
• Quick-Release Spring Locks – Easily remove your TV when required
• Integrated Bubble Level – Ensures precise alignment during installation
• Open Architecture Design – Improves ventilation and simplifies cable access
• Easy-Grip Tilt Knobs – Quickly adjust and lock your preferred tilt position
• Supports Curved TVs – Compatible with modern curved display designs

Specifications

Product Type: Tilt TV Wall Mount
Material: Heavy-duty steel
Finish: Powder-coated fine texture black
Dimensions: 85 × 938 × 625 mm
Screen Size Compatibility: 43" – 100"
Maximum Weight Capacity: 75 kg
Tilt Range: +5° to -10°
Profile from Wall: 85 mm

Installation Type:
• Solid wall
• Double stud (406 mm / 600 mm spacing)

Panel Type: Detachable panel
Wall Plate: Fixed wall plate
Bubble Level: Built-in

VESA Compatibility

Supports a wide range of mounting patterns including:

75×75, 100×100, 200×200, 300×300, 400×400, 600×400, 800×600, 900×600 and many more.

Maximum mounting pattern supported: 908 × 602 mm
