F280RGB CORE FAN SINGLE FRAME - BLACK

Description:

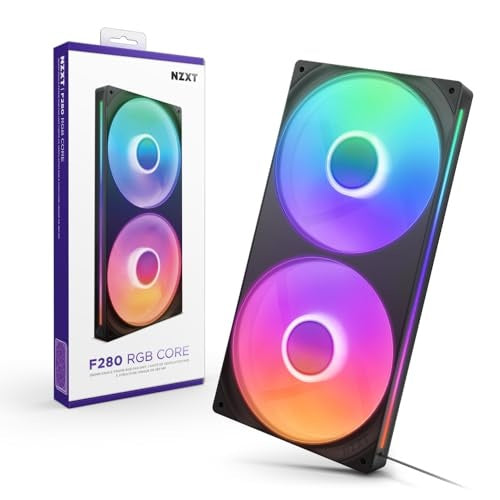

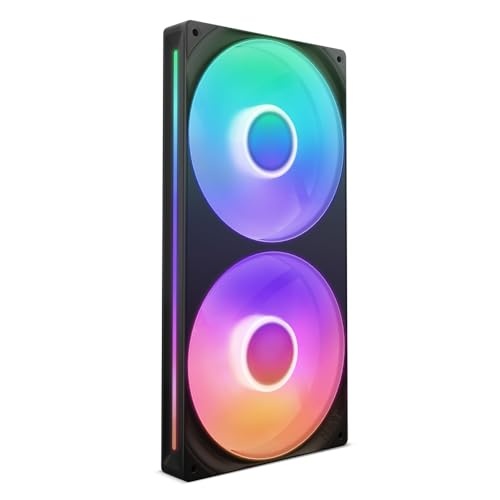

The NZXT RF-U28HF-B1 is a high-performance all-in-one RGB fan kit featuring two integrated 140mm fans in a streamlined single-frame unit. Designed to simplify installation and elevate cooling performance, this unit integrates advanced airflow engineering, addressable RGB lighting, and smart control capabilities via NZXT CAM software.

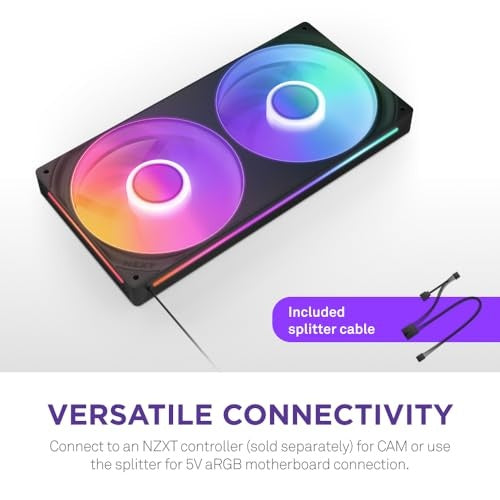

With versatile connectivity options, users can connect through an NZXT controller (sold separately) for full customization, or use the included splitter cable to plug directly into a motherboard's 5V ARGB header. The fans are optimized with high static pressure blades to deliver exceptional airflow through tight spaces like radiators or densely packed cases.

Equipped with fluid dynamic bearings, the fans provide whisper-quiet operation and are rated for a 60,000-hour lifespan. Anti-vibration rubber corners and a Zero RPM mode (when supported) reduce noise under low loads. Each fan features 8 individually addressable RGB LEDs that shine through semi-translucent blades and frame windows for a vibrant, customizable look.

Features:

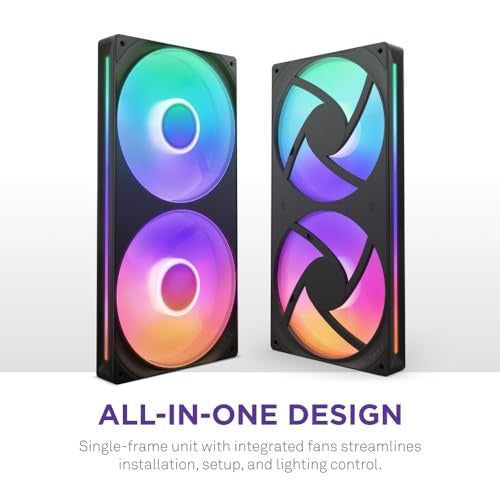

• All-in-one design with integrated dual 140mm fans for quick, tidy setup

• Compatible with NZXT CAM software for lighting and speed control

• Supports 5V ARGB motherboard header via included splitter cable

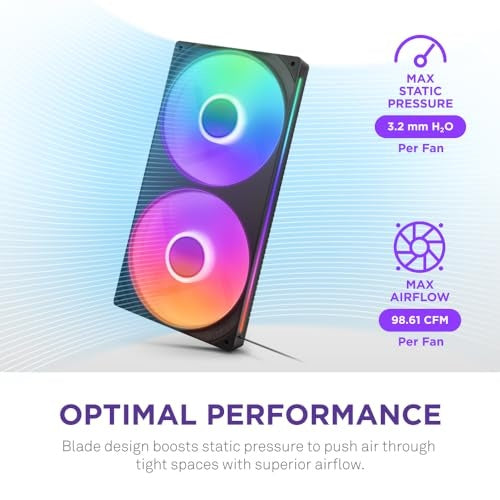

• Fan blades optimized for static pressure and high airflow in tight spaces

• Fluid dynamic bearings ensure quiet operation and long-term reliability

• Eight addressable RGB LEDs per fan for dynamic lighting effects

• Anti-vibration rubber corners minimize operational noise

• Zero RPM Mode shuts fans off during low system loads (when supported)

Dimensions:

• Height: 280 mm

• Width: 140 mm

• Depth: 26 mm

Fans (each):

• Speed: 500 – 2,000 ± 200 RPM

• Airflow: 98.61 CFM

• Static Pressure: 3.2 mm H₂O

• Noise Level: 34.50 dBA

• Power: 12V DC, 0.59A, 7.08W / 5V DC, 0.45A, 2.25W

• Bearing Type: Fluid Dynamic

• LEDs: 8 aRGB LEDs per fan hub

• Connector: 8-pin (PWM + RGB)

• Cable Length: 600 mm

• Fan Lifespan: 60,000 hours

Cables:

• Splitter Cable:

  • 4-pin PWM Fan Cable (1 x 300 mm)

  • 5V RGB & 4-pin NZXT RGB Cable (1 x 100 mm)

Attributes:
MPN: RF-U28HF-B1
Model: 810074844505
ASIN: B0D1RJSVBD
Size: 2x 140mm
Color: black
Dimensions: 11.02 in (L) x 11.02 in (W) x 11.02 in (H)
Weight: 550.0
