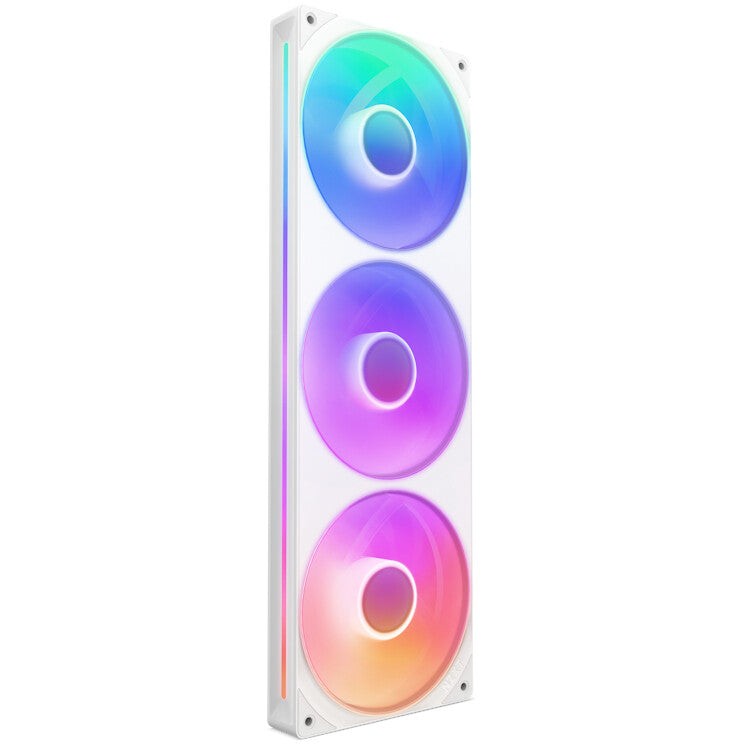

F360RGB CORE FAN SINGLE FRAME - WHITE

Description:
The NZXT RF-U36HF-W1 is an all-in-one RGB fan kit engineered for high-performance cooling and immersive lighting. With a sleek, single-frame design and integrated fans, installation is streamlined—reducing cable clutter and making setup simple. Whether you're looking to boost airflow in tight PC cases or enhance your rig’s aesthetics, this solution delivers both style and substance.

Connect effortlessly to an NZXT controller (sold separately) for full control via NZXT CAM software, or use the included splitter cable to connect directly to any motherboard’s 5V ARGB header. The fans are designed for superior static pressure and airflow, making them ideal for pushing air through dense radiators or compact chassis areas.

Each fan features fluid dynamic bearings for quiet operation and durability, with a lifespan rated at 60,000 hours. Anti-vibration rubber corners and Zero RPM Mode (when supported) further minimize noise during light workloads. With eight aRGB LEDs per fan and semi-translucent blades, the lighting effects are vibrant, customizable, and synchronized.

Features:

• All-in-one single-frame unit with integrated fans for simplified setup

• Connect to NZXT controller (sold separately) or motherboard ARGB header

• High static pressure blades optimized for airflow through tight spaces

• Fluid dynamic bearings for quiet, stable, and long-lasting operation

• 8 addressable RGB LEDs per fan hub for vibrant, customizable lighting

• PWM control adjusts fan speeds dynamically based on system temperature

• Anti-vibration rubber corners and Zero RPM Mode for silent operation

• Compatible with NZXT CAM software for full customization

Dimensions:

• Height: 360 mm

• Width: 120 mm

• Depth: 26 mm

Fans (per fan):

• Speed: 500 - 2,400 ± 250 RPM

• Airflow: 75.12 CFM

• Static Pressure: 3.3 mm H₂O

• Noise: 30.00 dBA

• Power Consumption: 12V DC, 0.79A, 9.48W / 5V DC, 0.81A, 4.05W

• Bearing: Fluid Dynamic

• LED Count: 8 LEDs per fan

• Connector: 8-pin for PWM & RGB

• Cable Length: 600 mm

• Material: Plastic, Rubber, PCB

• Fan Lifespan: 60,000 hours

Cables:

• Splitter Cable: 4-pin PWM Fan Cable (1 x 300 mm)

• 5V RGB & 4-pin NZXT RGB Cable (1 x 100 mm)

Attributes:
MPN: RF-U36HF-W1
Model: RF-U36HF-W1
Color: white
Weight: 600.0
