H7 FLOW2024MID-TOWER ATXCASE-ALL BLACK

Description:

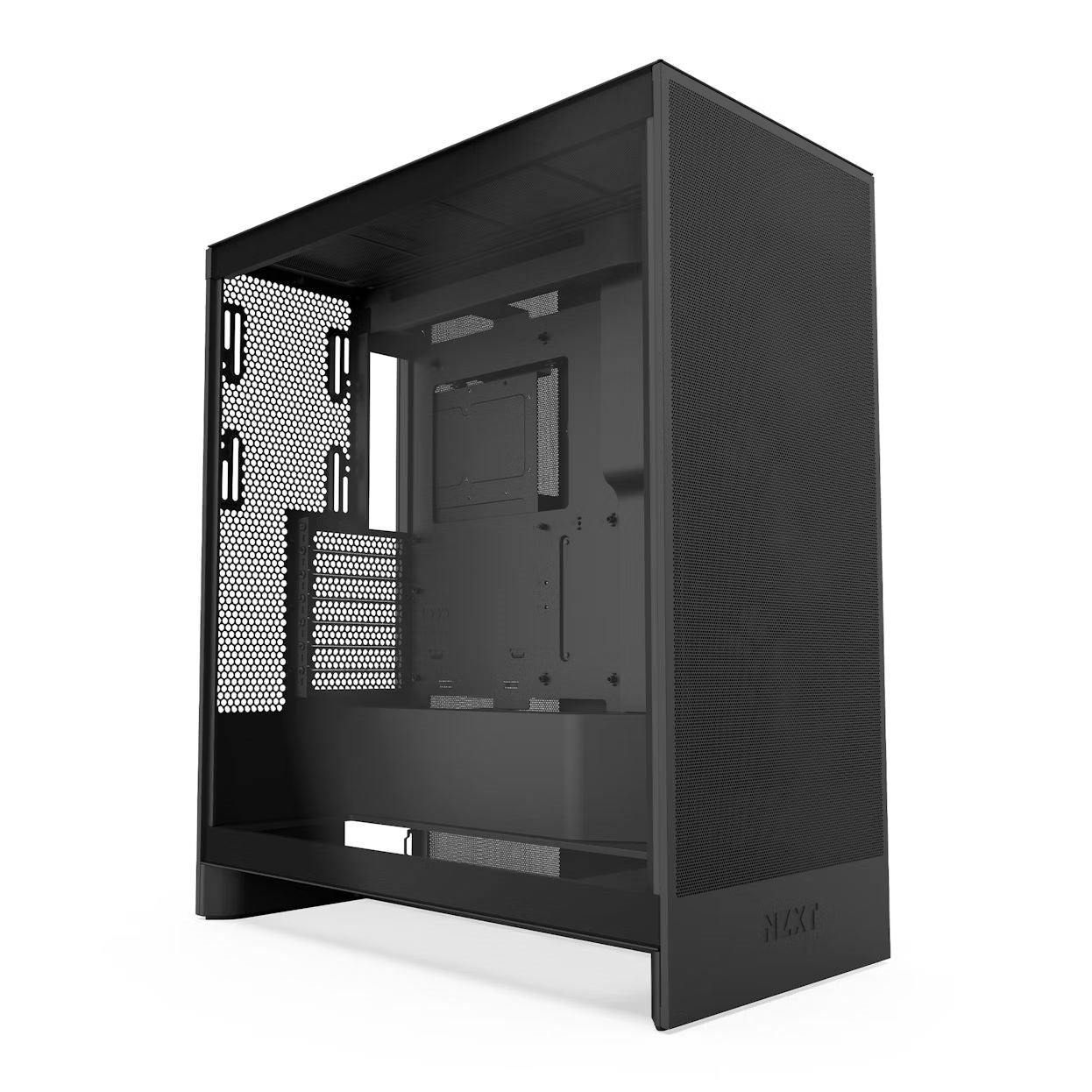

The NZXT H7 Flow 2024 Mid-Tower ATX Case – All Black (Model: CM-H72FB-01) is engineered to revolutionize GPU cooling while maintaining a sleek, compact mid-tower footprint. Its innovative vertical PSU layout creates room for three 120mm bottom-mounted fans, delivering direct, efficient cooling to your GPU without increasing the case size. Equipped with three front 120mm fans and high-performance mesh panels, this case offers excellent airflow and dust filtration right out of the box.

Designed for versatile builds, the H7 Flow supports large motherboards up to E-ATX and accommodates high-performance cooling solutions, including radiators up to 420mm in the front and 360mm on top. Its intelligent cable management system includes wide channels, built-in hooks, and straps, making cable routing effortless.

Key Features:

• Vertical PSU layout enabling 3 × 120mm bottom fans for direct GPU cooling

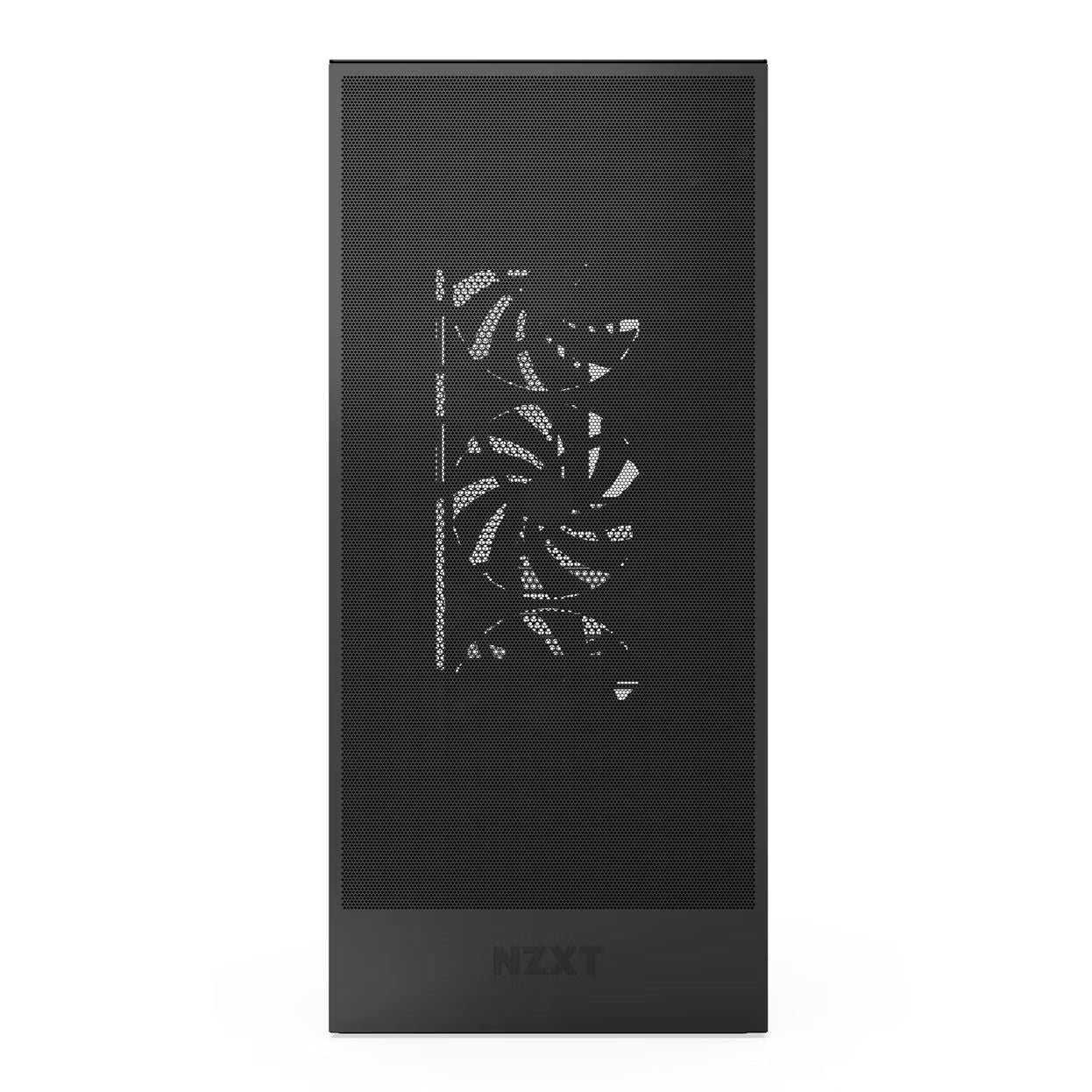

• Three pre-installed front 120mm fans for superior airflow

• High-performance mesh panels optimize intake, exhaust, and dust filtration

• Supports up to 10 fans: 3 front, 3 top, 3 bottom, 1 rear

• Radiator support: Front up to 420mm, Top up to 360mm, Rear up to 140mm

• Intuitive cable management with wide channels and included straps

Specifications:

• Model: CM-H72FB-01

• MPN: CM-H72FB-01

• Color: Black

• Weight: 13.8 kg

• Dimensions:

  • Height (with feet): 544 mm

  • Width: 244 mm

  • Depth: 468 mm

• Material: SGCC Steel, Dark Tinted Tempered Glass

• Motherboard Support: E-ATX (up to 27.7 mm), ATX, Micro-ATX, Mini-ITX

• CPU Cooler Clearance: Up to 185 mm

• GPU Length Clearance: Up to 410 mm

• PSU Length Clearance: Up to 200 mm

• Cable Management Space: Up to 34.5 mm

• Front I/O:

  • 2 × USB 3.2 Gen 1 Type-A

  • 1 × USB 3.2 Gen 2 Type-C

  • 1 × Headset Audio Jack

• Expansion Slots: 7 standard

• Drive Bays: 2.5" (2+2), 3.5" (2)

• Fan Support:

  • Front: 3 × 120 mm / 3 × 140 mm (3 × F120Q included)

  • Top: 3 × 120 mm / 2 × 140 mm

  • Rear: 1 × 120 mm / 1 × 140 mm

• Fan Specs (F120Q):

  • Speed: 1,350 ± 150 RPM

  • Airflow: 60.2 CFM

  • Static Pressure: 1.05 mm-H2O

  • Noise: 24.1 dBA

  • Connector: 3-pin
