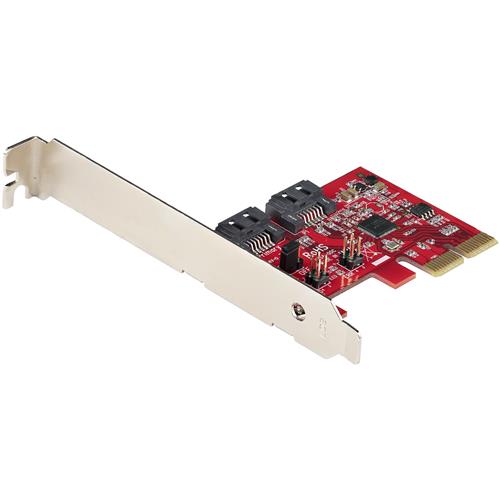

SATA PCIe Card 2 Ports 6Gbps SATA RAID

Description:
The SATA PCIe Card with 2 Ports (6Gbps) adds fast and reliable SATA connectivity to your server or desktop via a PCI Express x2 slot. Designed for high-speed storage applications, it supports SATA III (6Gbps) and is ideal for connecting SSDs or HDDs. With support for RAID 0, 1, and JBOD configurations, it provides flexible options for data redundancy and performance. This plug-in card is compatible with multiple platforms, including Windows, Linux, and macOS, and includes both full-profile and low-profile brackets for versatile installation. Environmentally certified and built for long-term use, it's an excellent solution for storage expansion in professional systems.

Specifications:

• Host Interface: PCI Express x2

• Controller Type: Serial ATA/600

• RAID Supported: Yes

• RAID Levels: 0, 1, JBOD

• Device Supported: Server

• Total Number of SATA Ports: 2

• Number of SATA Ports (Internal): 2

• Form Factor: Plug-in Card

• Dimensions:

  • Height: 4.76" (121 mm)

  • Width: 2.72" (69 mm)

  • Length: 0.87" (22 mm)

• Operating Systems Supported:

  • Windows 7, 8, 8.1, 10, 11

  • Windows Server 2012 R2, 2016, 2019

  • Linux 2.6.32

  • Mac OS X 10.10 Yosemite – 11.0 Big Sur

• Platform Supported: PC

• Environmental Certification: RoHS, WEEE

• Environmentally Friendly: Yes

• Pack Contents:

  • SATA Controller Card

  • Full-Profile Bracket (Installed)

  • Low-Profile Bracket

  • Quick-Start Guide

• Weight: 1.1 lbs

Attributes:
MPN: 2P6GR-PCIE-SATA-CARD
Model: 2P6GR-PCIE-SATA-CARD
