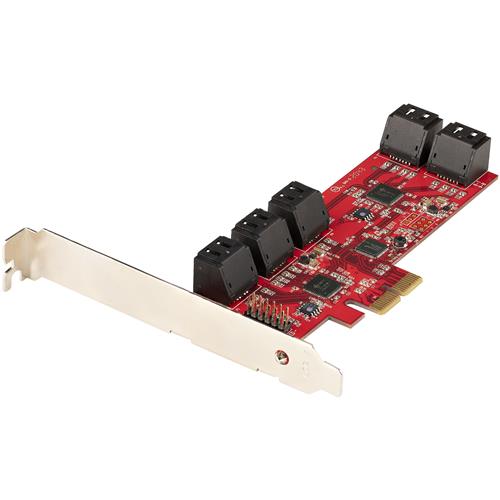

SATA PCIe Card Controller Card 10 Ports

Description: 10-Port SATA PCIe Card Controller – 6Gbps – ASM1062 Chipset
Expand your desktop or server's storage capabilities with this high-performance 10-Port SATA PCIe Card Controller from StarTech.com. Powered by the ASM1062 controller and built on a single-chip architecture, this card adds ten SATA III (6Gbps) ports through a single PCIe x4 slot, offering up to 10Gbps total bandwidth. It supports features like Port Multiplier and Native Command Queuing (NCQ) for optimized drive performance and efficient data handling.

Compatible with PCIe 2.0, SATA 3.2, and AHCI 1.4 specifications, this controller card works with various operating systems, including Windows (7 and later), macOS (10.10+), and Linux (2.6.32+). The card is plug-and-play, requiring no RAID configuration or bifurcation, and comes with both full and low-profile brackets for flexible installation.

Ideal for professional IT environments, this adapter enhances system storage with ease and reliability—whether you're connecting hard drives or SSDs.

Key Features:

• Add 10 SATA III (6Gbps) ports via a single x4 PCIe slot

• ASM1062 controller chip for stable and high-speed performance

• Supports Port Multiplier and NCQ for optimized multitasking

• Compatible with: Windows 7+, macOS 10.10+, Linux 2.6.32+

• No RAID or bifurcation required; plug-and-play installation

• Supports storage management systems: Storage Spaces (Windows), RAID Assistant (macOS), and mdadm (Linux)

• Includes full-profile bracket (low-profile also included)

• Connect up to 10 SATA HDDs or SSDs (SATA cables sold separately)

Attributes:
MPN: 10P6G-PCIE-SATA-CARD
Model: 10P6G-PCIE-SATA-CARD
Weight: 106.67 g
