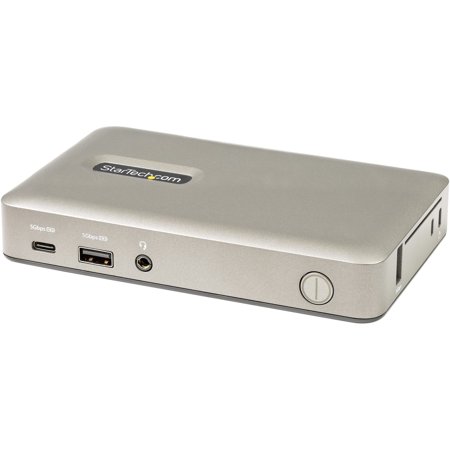

StarTech USB C DOCK DISPLAYPORT 4K 30/VGA/65W PD

USB-C DP 4K30Hz VGA TAA Docking Station

This USB-C docking station provides a compact, high-performance solution for expanding your laptop’s connectivity. Designed for business, education, and professional environments, it enables streamlined setup with access to video, data, audio, and network interfaces through a single USB-C connection. With DisplayPort 1.2 support for up to 4K at 30Hz or VGA output, users can extend or mirror their displays for increased productivity.

The dock includes three USB-A 3.1 (5Gbps) ports—one with BC 1.2 charging support—along with one USB-C data port (5Gbps), a 3.5mm audio combo jack, and Gigabit Ethernet with PXE Boot and Wake-on-LAN support. An isolated HID USB port ensures secure peripheral input. The included 1m screw-lock USB-C host cable prevents accidental disconnection and supports Power Delivery 3.0 up to 65W. No drivers are required for use with Windows, macOS, iPadOS, Android, or ChromeOS.

Compact and secure, the docking station also features K-Slot compatibility for added physical security and optional mounting solutions.

Key Features:

• USB-C mini dock with DP 1.2 (4K @ 30Hz) or VGA video output

• 3 x USB-A 3.1 ports (5Gbps), including one BC 1.2 charging port

• 1 x USB-C data port (5Gbps)

• 65W Power Delivery 3.0 support

• 3.5mm audio combo jack

• Gigabit Ethernet with PXE Boot and Wake-on-LAN

• Isolated USB HID port for secure peripheral input

• Includes 1m USB-C screw-lock cable

• Compact footprint: 145mm x 91mm

• K-Slot security and optional mounting support

• Plug-and-play with no driver installation

• Includes StarTech.com Connectivity Tools App

Specifications:

• Maximum resolution: 4K at 30Hz (DisplayPort)

• Weight: 4.85 lbs

Attributes:
MPN: DKM30CHDPD
Color: space gray
