USB Dual VGA over Cat5 KVM Console Extender

StarTech.com 200m / 656.16 ft USB Dual VGA Over Cat5 KVM Console Extender

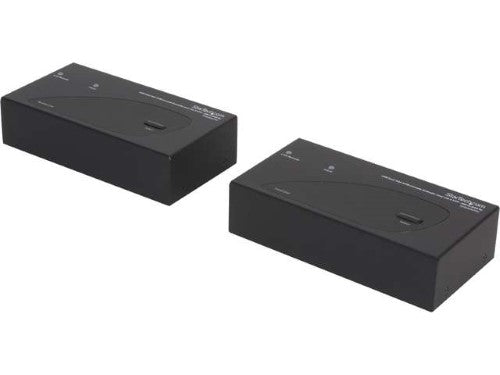

The StarTech.com SV565DUTPU USB Dual VGA KVM Console Extender is a powerful and reliable solution for remote operation of servers, workstations, or KVM switches over long distances. Using two standard Cat5 (or better) UTP cables, this extender enables you to control a Dual VGA-enabled PC or KVM switch from up to 200 meters (656.16 feet) away, while maintaining high-quality video resolution up to 1920x1200.

Ideal for environments where the physical presence of the computer is not practical—such as industrial, broadcasting, or secured locations—this extender provides a local-console feel at the remote location. Whether you're working in a sound-sensitive studio or a harsh server room, it delivers reliable and uninterrupted access.

The extender supports hot-key and push-button controls for quick switching between local and remote setups, making it ideal for setups requiring both proximity and distance-based control. The system includes all necessary PC connection cables for fast deployment. With support for most combo and wireless keyboard/mouse sets, it provides a flexible and user-friendly experience.

In addition to video extension, it offers on-the-fly video adjustments via hot-key commands, allowing fine-tuning of the image over varying cable lengths. Console access is available at both local and remote ends, giving full control wherever it’s most convenient.

Features

• Extends USB and dual VGA signals up to 200m (656.16 ft) over Cat5 or better cables

• Supports high-resolution video up to 1920x1200

• Compatible with KVM switches and dual VGA PCs

• Includes all necessary PC connection cables

• Supports most wired and wireless keyboard/mouse combos

• Console access at both local and remote ends

• Hot-key and push-button switching between local and remote control

• Hot-key video adjustment for optimal quality across cable distances

• Rugged build—ideal for professional, industrial, or broadcast applications

• Leverages existing Cat5/Cat6 infrastructure

Specifications

• Model: SV565DUTPU

• MPN: SV565DUTPU

• Size: All

• Age Group: Adult

• Gender: Unisex

• Max Extension Distance: 200m (656.16 ft)

• Max Video Resolution: 1920x1200

• Video Outputs: Dual VGA

• Console Support: Local and Remote

• Compatible Cables: 2x Cat5/Cat5e/Cat6 UTP

• Input Devices Supported: USB Keyboard & Mouse (including wireless combos)

• Dimensions: 17 cm (L) x 148 mm (W) x 71 mm (H)

• Weight: 1.72 lbs
